Specification | ||
Model No. | XY-Z965 | XY-Z966 |
Flavors | 2 + 1mixed flavor | 2 + 1mixed flavor |
Model | Commercial Upstanding | Commercial Upstanding |
Model No. | XY-Z965 / XY-Z965S | XY-Z966 / XY-Z966S |
Capacity | 25 ~ 28L/H | 36 ~ 38L/H |
Voltage Power Supply | 220V/50hz,220V/60hz,110V/60hz | 220V/50hz,220V/60hz,110V/60hz,380V/50hz |
Refrigerant | R22/R410a/R404a/R134a/R290a | R22/R410a/R404a/R134a/R290a |
Power | 1800W/2000W | 2400W/2600W |
Compressor | Panasonic/Embraco | Panasonic/Embraco |
Gear Box | Pure metal gear in reducer | Pure metal gear in reducer |
Hopper Capacity | 6.5Lx2 | 6.5Lx2 |
Hopper Material | Food grade 304 stainless steel | Food grade 304 stainless steel |
Frezze Cylinder | 2.0Lx2 | 2.4Lx2 |
Cylinder Material | Food grade 304 stainless steel | Food grade 304 stainless steel |
Displayer | LCD displayer | LCD displayer |
Feeding System | Gravity feeding | Gravity feeding |
Air Pump | Yes | Yes |
Puffing Rate | 30 ~ 40% | 30 ~ 40% |
Precooling System | Additional Optional | Additional Optional |
Cooling Way | Air cooled from left side of the machine | Air cooled from left side of the machine |
Net Weight | 120KG | 130KG |
Gross Weight | 140KG | 150KG |
Machine Dimension | 555x760x1345mm | 555x760x1345mm |
Package Dimension | 620x830x1420mm | 620x830x1420mm |
Optional Functions |
A.Liquid level alarm B.Hopper mixer |
A.Liquid level alarm B.Hopper mixer C.Pure stainless steel beater |
First Freeze Time | 15 ~ 17mins | 15 ~ 17mins |
Output Per Hour (80g/cups) | 180 ~ 220cups | 360 ~ 400cups |
Continuous Ice Cream Production | > = 12cups | > = 20cups |
Product Features
1. All stainless steel body, metal texture, sturdy and durable.
2. Food grade rubber sealing ring, beater, safe and practical, protect your health.

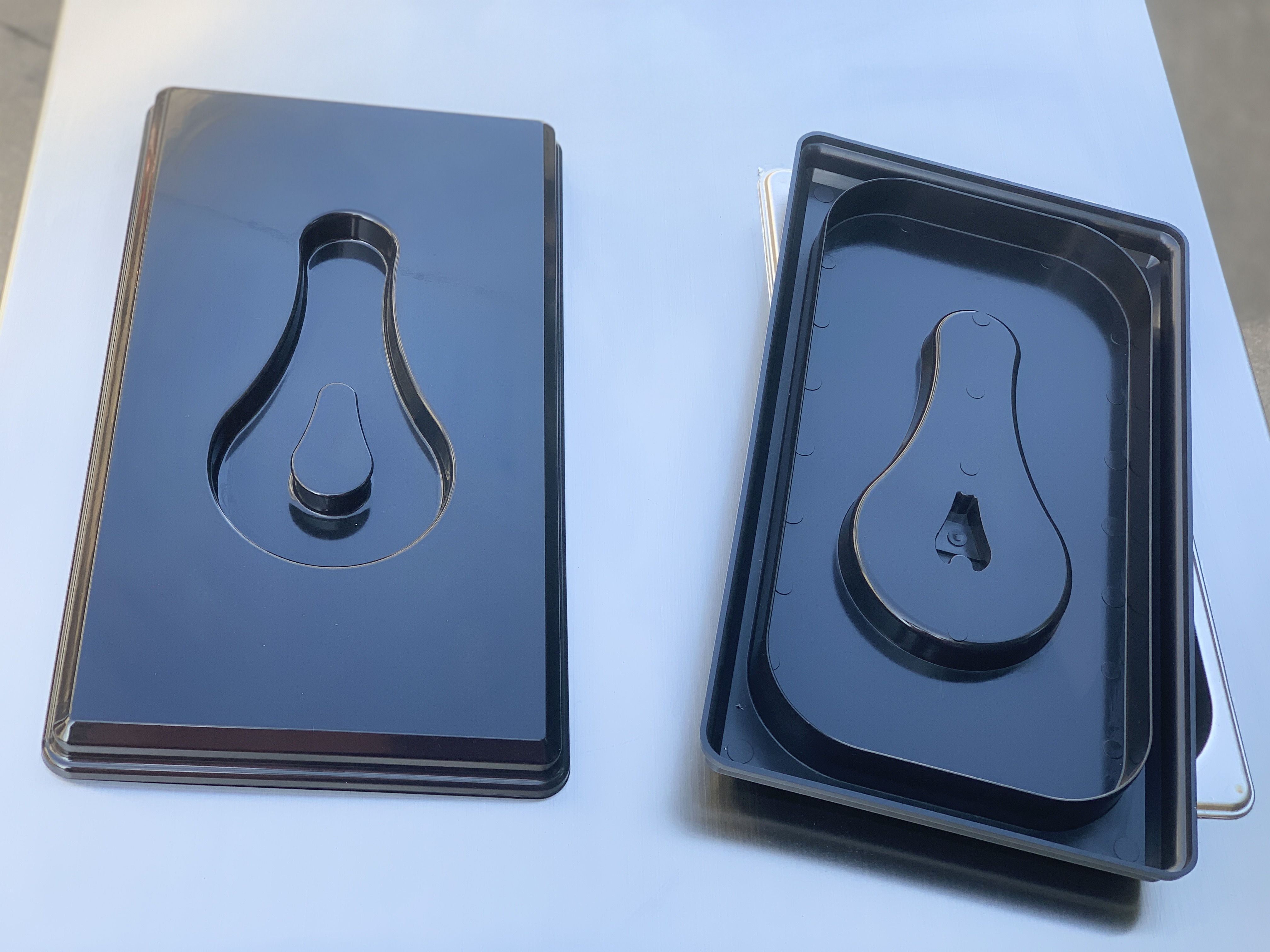

3. Removable frosted water receiving tray and new card slot material cover design, easy to clean.
4. With noise reduction rubber handle, easy operation, quiet enjoyment.
5. All #304 food grade stainless steel hopper, cleverly integrated into the body, no solder joints, beautiful appearance, healthy and safe to contact food.
6. One-piece foam forming evaporation cylinder, pure 304 food grade stainless steel, higher foam density, better heat preservation effect and faster cooling speed.
7. Digital LCD display, built-in one-key refrigeration, one-key cleaning, real-time monitoring of the number of cups and the freezing process of the machine.
progress, voltage, temperature, freezing level, pre-cooling system status, etc.
8. All-copper condenser, international famous brand compressor, Panasonic compressor / Embraco compressor, the cooling effect is faster.
9. Top brand low-noise motor, two-in-one-out condenser full copper thickness 0.3, low-noise, oil-leakage-proof and polished pure metal gear box.
10. Pre-cooling system and material shortage alarm system can be installed separately according to needs.
11. Suitable for commercial places such as milk tea shops, dessert shops, convenience stores, coffee shops, etc.
