| Item |

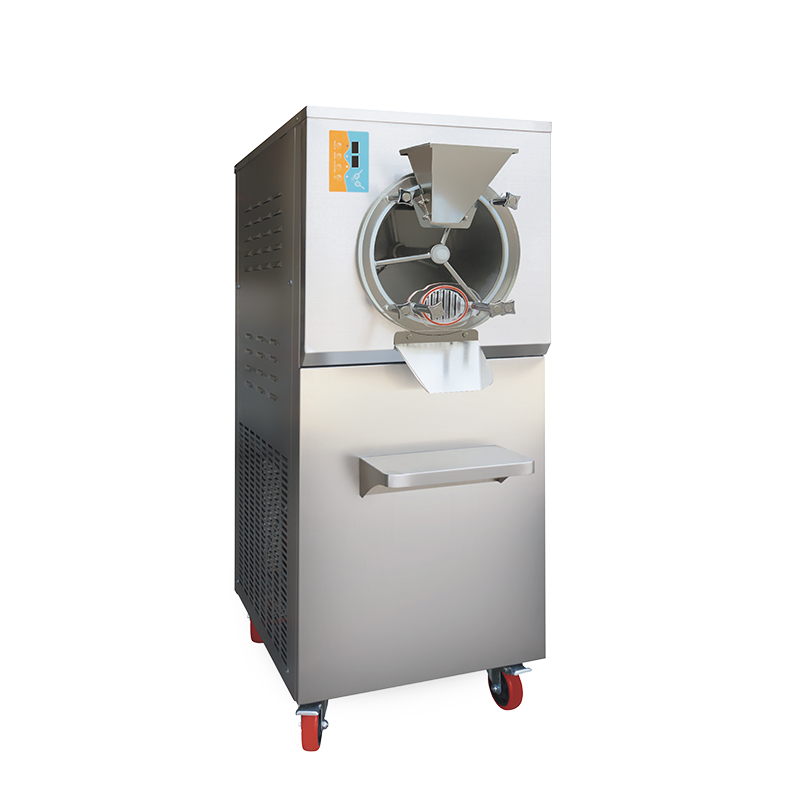

HARD ICE CREAM MACHINE/GELATO MACHINE |
HARD ICE CREAM MACHINE/GELATO MACHINE |
HARD ICE CREAM MACHINE/GELATO MACHINE |
| Model |
COMMERCIAL UPSTANDING |
COMMERCIAL UPSTANDING |
COMMERCIAL UPSTANDING |
| Model No. |
XY-G30 |
XY-G50 |
XY-G70 |
| Capacity |
38~40L/H |
48~50L/H |
68~70L/H |
| Voltage |
220V/50HZ 220V/60HZ 110V/60HZ |
220V/50HZ 220V/60HZ 110V/60HZ |
220V/50HZ 220V/60HZ 110V/60HZ |
| Refrigerant |
R22/R410a/R404a |
R22/R410a/R404a |
R22/R410a/R404a |
| Power |
2400W |
3300W |
4500W |
| Compressor |
Pansonic/Embraco |
Pansonic/Embraco |
Pansonic/Copeland/Tecumseh |
| Gear Box |
Turbo reducer without belt |
Turbo reducer without belt |
Turbo reducer without belt |
| Frezze Cylinder |
13Lx1 |
16.5Lx1 |
25Lx1 |
| Cylinder Material |
Full 304 stainless steel food grade |
Full 304 stainless steel food grade |
Full 304 stainless steel food grade |
| Displayer |
LCD displayer |
LCD displayer |
LCD displayer |
| Cooling Way |
Air cooled from left side of the machine |
Air cooled from left side of the machine |
Air cooled from left side of the machine |
| Net Weight |
140KG |
160KG |
180KG |
| Gross Weight |
150KG |
180KG |
200KG |
| Machine Dimension |
780x560x1355mm |
780x560x1355mm |
780x560x1355mm |
| Package Dimension |
850x655x1480mm |
850x655x1480mm |
850x655x1480mm |
| Machine Features |
1.Pure 304 stainless steel food grade evaporator cylinder and agitator shaft ,food grade discharge door. |
1.Pure 304 stainless steel food grade evaporator cylinder and agitator shaft ,food grade discharge door. |
1.Pure 304 stainless steel food grade evaporator cylinder and agitator shaft ,food grade discharge door. |

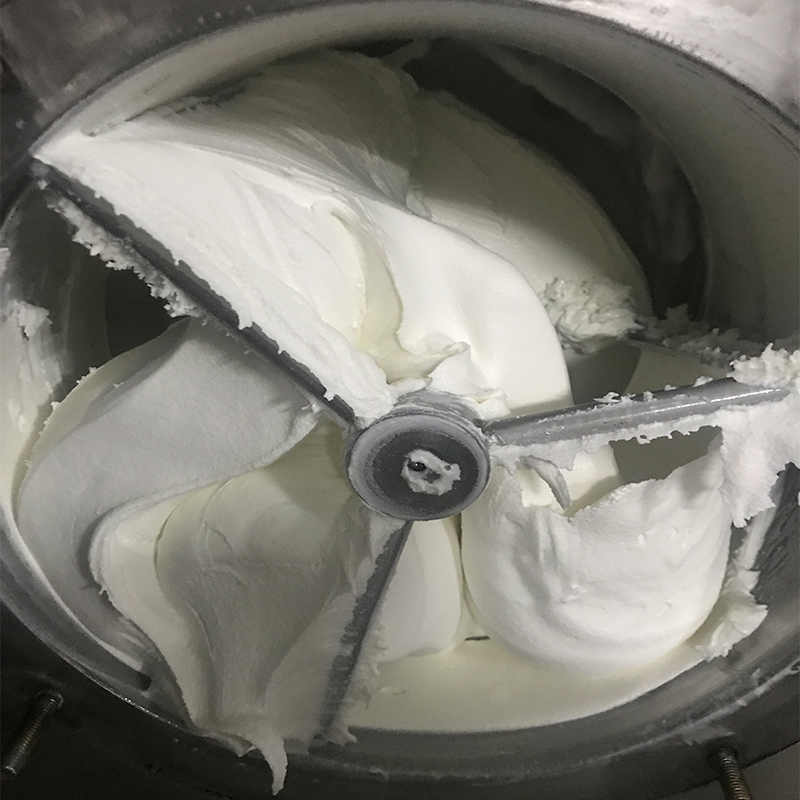

| 2.The stainless steel agitator shaft is equipped with high-strength food-grade arc-shaped scrapers, mixing the raw materials more fine and silky. |
2.The stainless steel agitator shaft is equipped with high-strength food-grade arc-shaped scrapers, mixing the raw materials more fine and silky. |
2.The stainless steel agitator shaft is equipped with high-strength food-grade arc-shaped scrapers, mixing the raw materials more fine and silky. |
| 3.Equipped with high-precision worm gear reducer. |
3.Equipped with high-precision worm gear reducer. |
3.Equipped with high-precision worm gear reducer. |

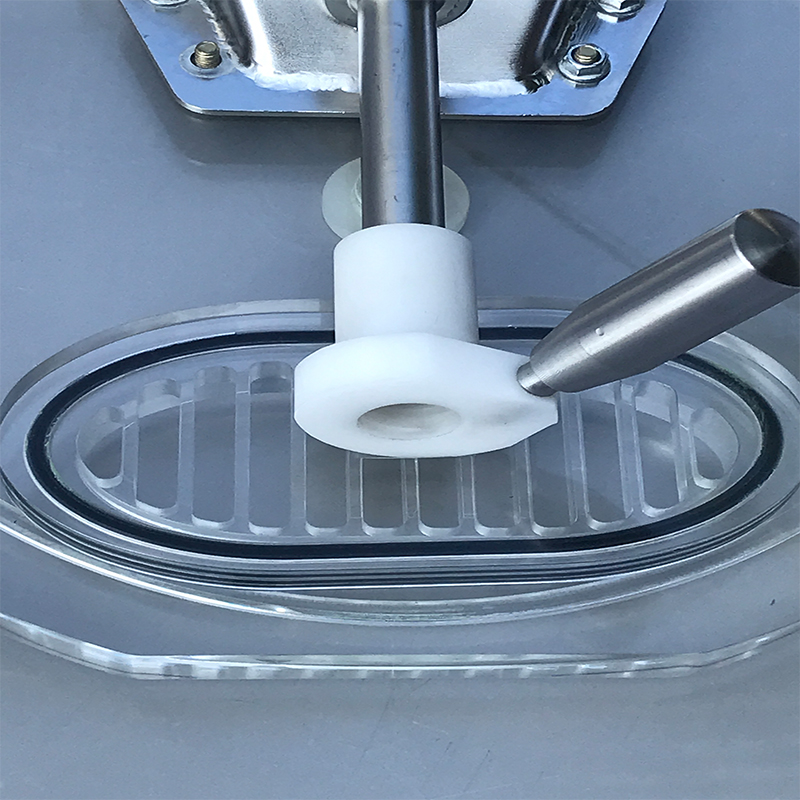

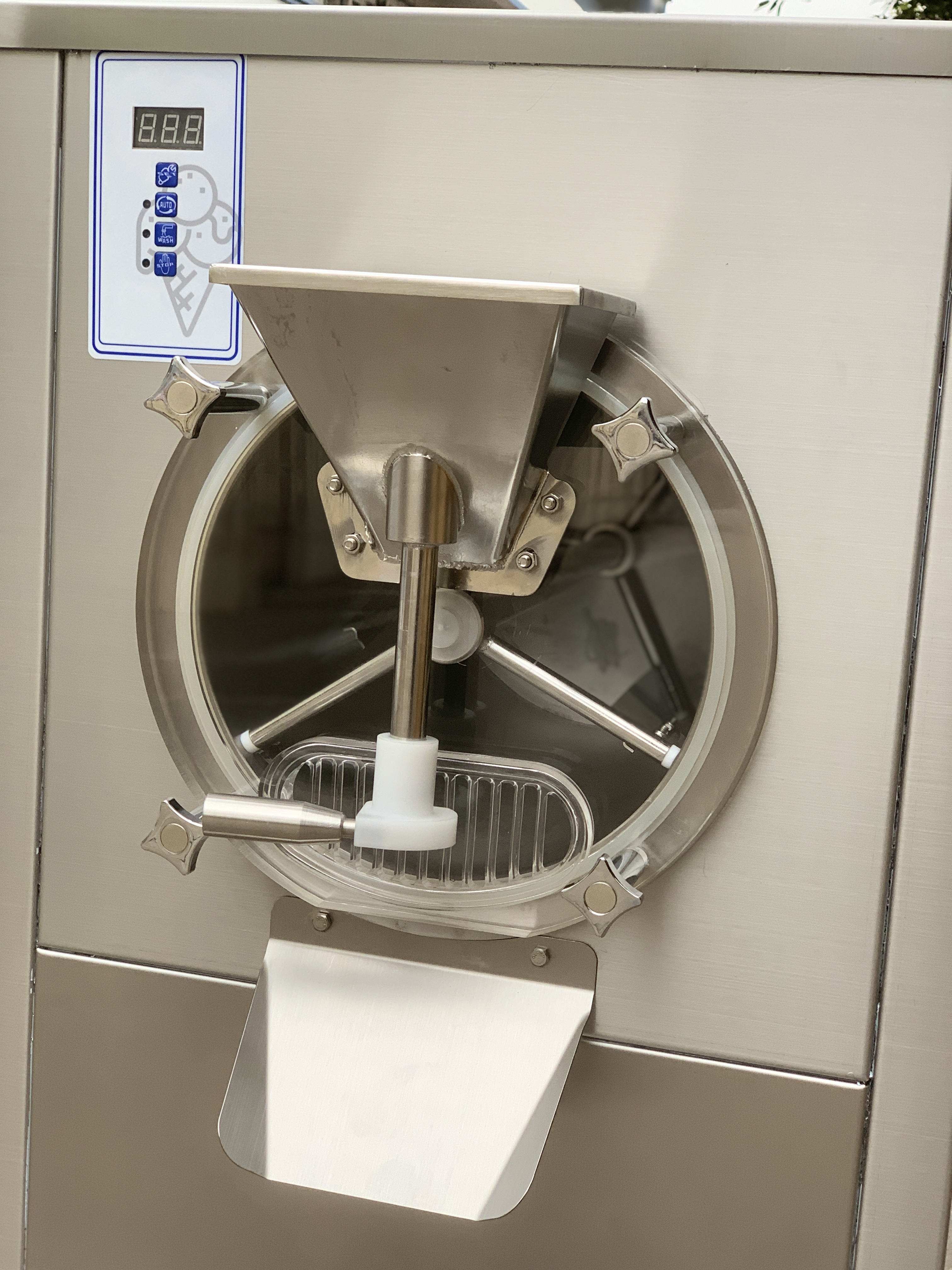

| 4.The unique transparent discharge door design has better sealing performance and higher cooling efficiency. |
4.The unique transparent discharge door design has better sealing performance and higher cooling efficiency. |
4.The unique transparent discharge door design has better sealing performance and higher cooling efficiency. |
| 5.All copper large condenser match with high power motor fan and international famous brand compressor, Embraco /Panasonic compressor |
5.All copper large condenser match with high power motor fan and international famous brand compressor, Embraco /Panasonic compressor |
5.All copper large condenser match with high power motor fan and international famous brand compressor, Embraco /Panasonic compressor |
| 6.Microcomputer LCD display, with built-in one-key freeze, one-key clean, current protection, and cooling time adjustment functions. |
6.Microcomputer LCD display, with built-in one-key freeze, one-key clean, current protection, and cooling time adjustment functions. |
6.Microcomputer LCD display, with built-in one-key freeze, one-key clean, current protection, and cooling time adjustment functions. |
